- Test 4 types of cables: RJ-45, RJ-11, USB, and BNC. Test installed wiring or patch cables.
- Tests shielded (STP) or unshielded (UTP) LAN cables.
- Test shields in USB cables.
- Can test from 2 remote points.
- Beeper provides audible annunciation of test results.

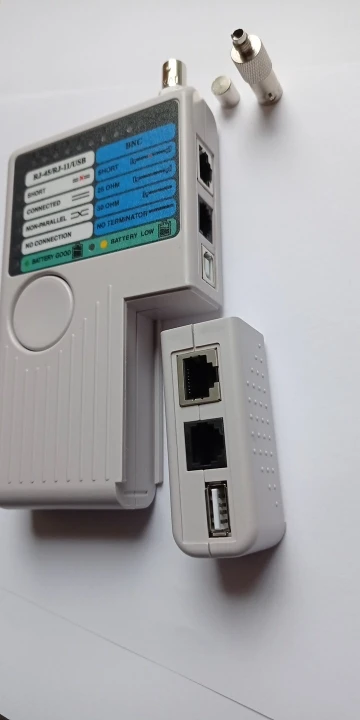

- Remote unit stores in the Main unit.
- BNC terminator 25/50 Ohm indications.
- Straight or crossover indications.
- LEDs indicate connections and faults of wire and pins.
- RJ-11/RJ-45 are equipped with 50u gold plating. 300 feet test distance (RJ-45/RJ-11/BNC).
- Ergonomic portable handheld design.
- Powered by a 9V Alkaline battery. (Not included)
- Convenient battery access.
- Low Battery Indicator.
- Simple one-button test.
- Fast speed testing.

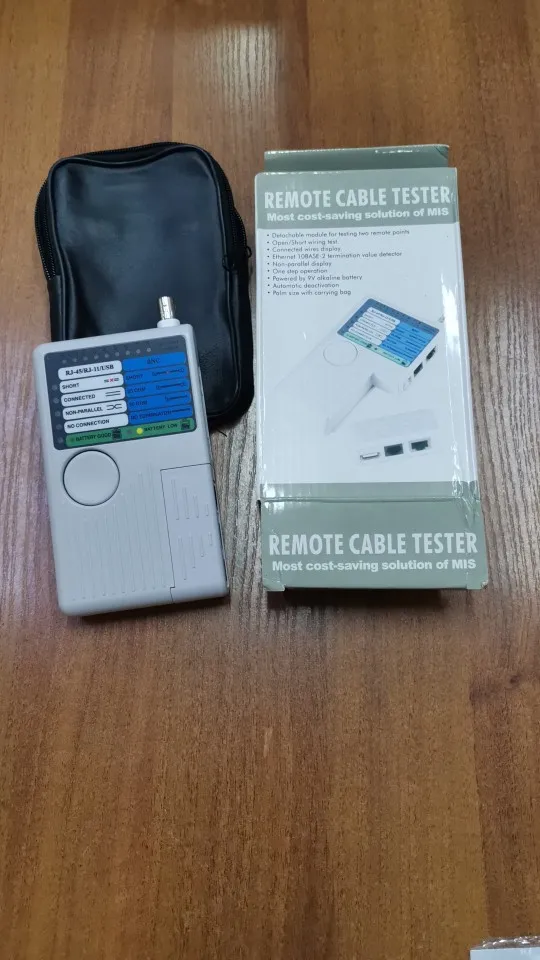

- With a soft leather bag for carrying.
- High quality warranted.
|Cable Tested||UTP and STP LAN cables, terminated in RJ-45 male connectors (EIA/TIA 568); RJ-11 cables with male connectors, 2 to 6 conductors installed; USB cables with Type A flat plug on one end and type B square Plug on other end; BNC cables with male connectors|
|Faults Indicated||No Connections, short circuit, Opens, and Crossover|
|Low Battery Indicator||LED lights to indicate low battery|
|Power||1 x 9 V 6F22 DC Alkaline Battery (Battery Not Included)|
|Item dimensions||Approx. 162 x 85 x 25mm (6.38 x 3.35 x 0.98 inch)|
|Item weight||164g (Battery excluded)|
